Electair Exports Swimming Pool and Spa Controls

Image 1

Control for swimming pool with inbuilt spa, balance tank, swim jet, large electric boost heater with proportional load shed with website providing monitoring system and remote control.

Image 2

Interior of image 1, a control for swimming pool with inbuilt spa, balance tank, swim jet, large electric boost heater with proportional load shed with website providing monitoring system and remote control.

Image 3

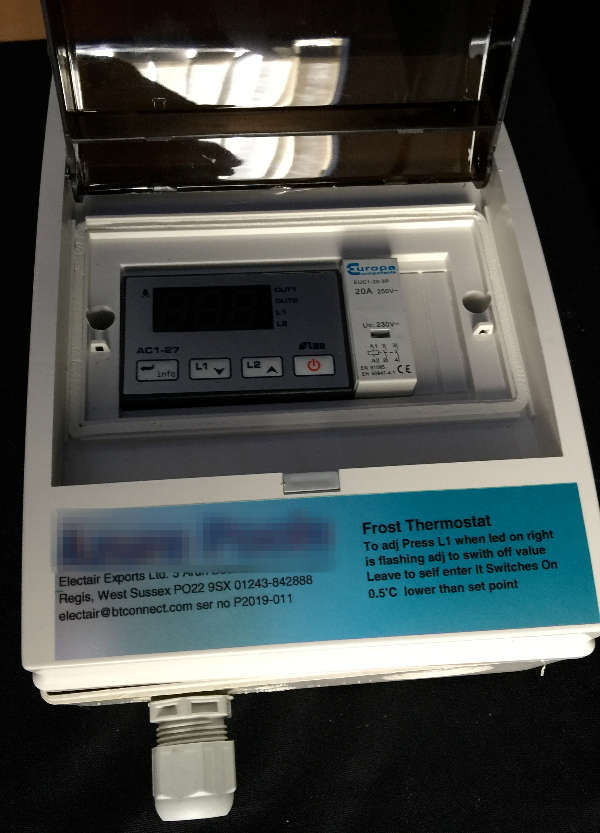

Individual add on frost thermostat.

Electair Swimming Pool control enclosure

Image 4

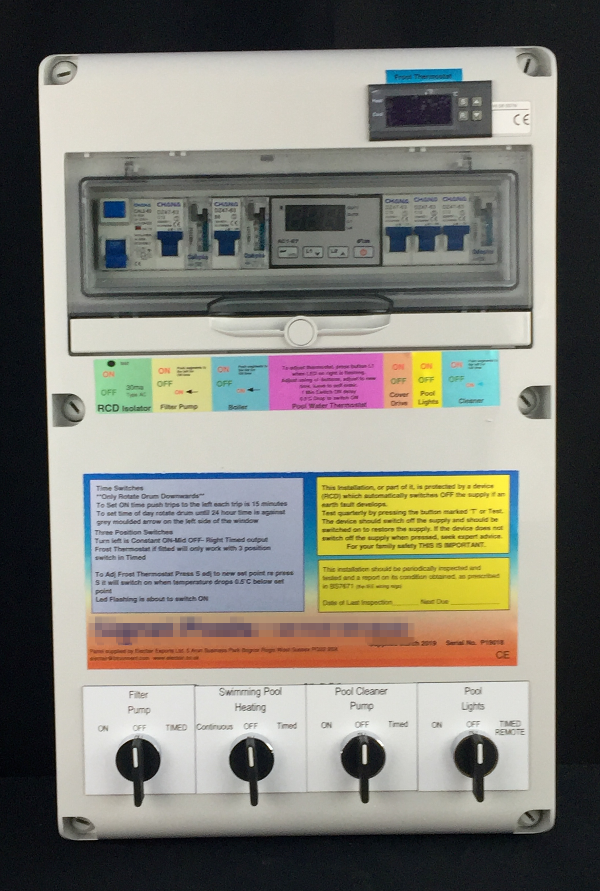

Typical garden pool control panel in a plastic enclosure.

3 phase swimming pool and spa control panel

Image 5

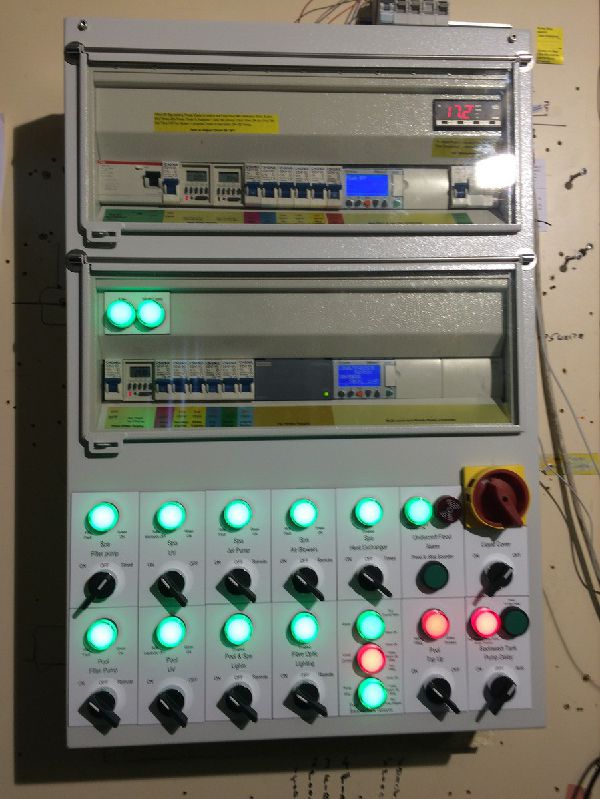

This is a 3 phase swimming pool control panel for a swimming pool with overflow to spa. It includes a balance tank control and bottom right is a cellar flood alarm. The two green indicators are the fire alarm link and safety emergency stop circuits. Digital pool temperature and digital time switches. Built in an Amendment 3 compliant 50 module enclosure.

Amendment 3 compliant swimming pool and spa control panel

Image 6

3 Phase electrical supply with single phase loads spread over the phases. Built in an Amendment 3 compliant 13 module electrical swimming pool and spa enclosure.

single phase dual temperature swimming pool and spa control panel

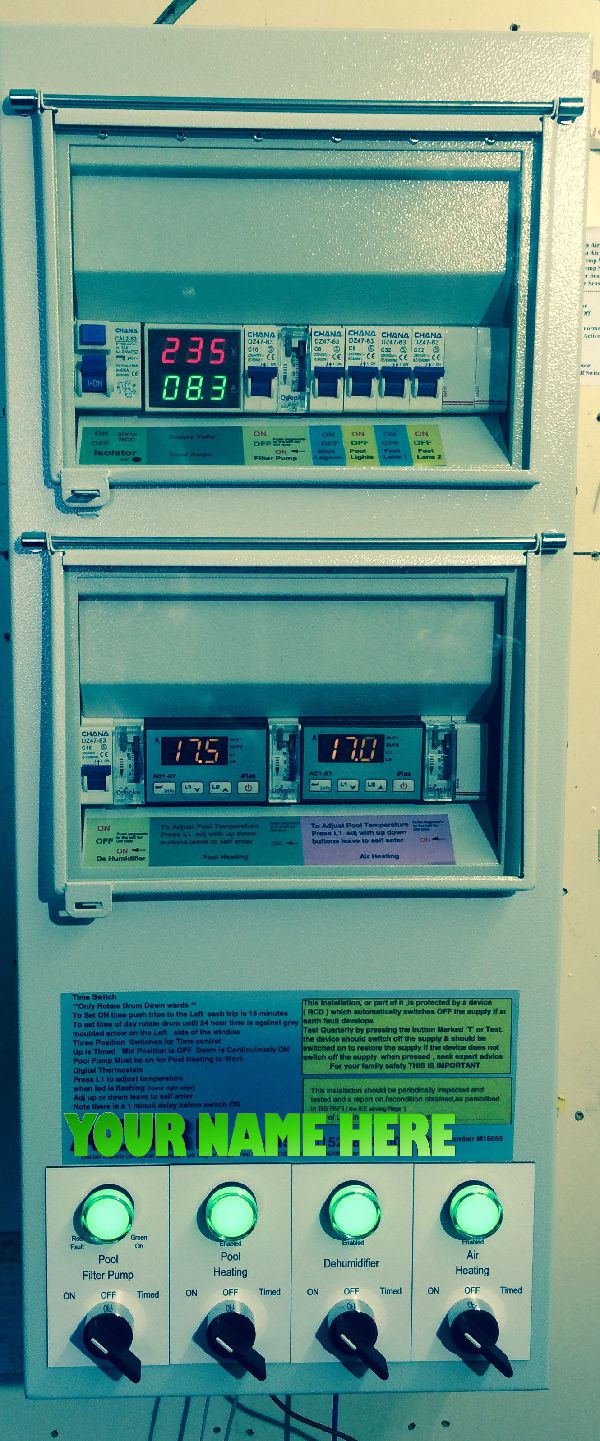

Image 7

Single phase dual temperature swimming pool and spa control built in 26 module (2 x 13) Amendment 3 compliant enclosure.

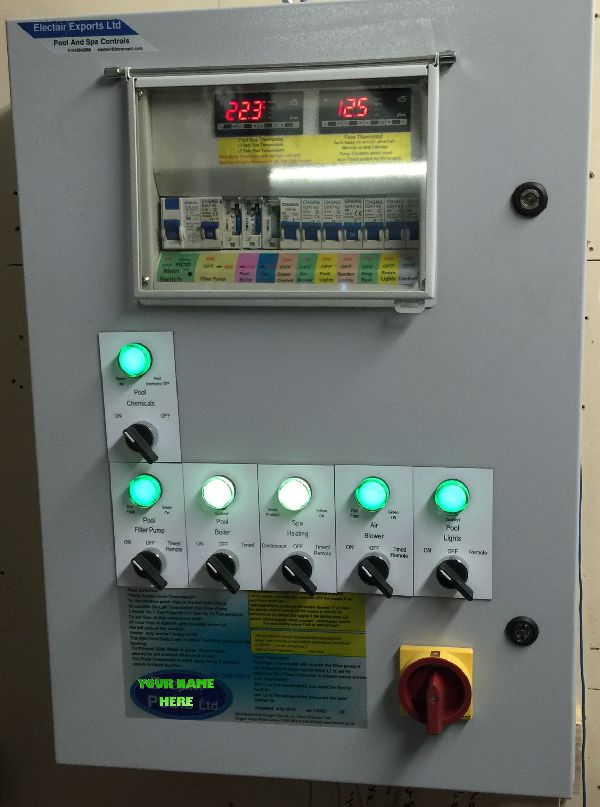

Conventional enclosure for swimming pool and spa control panels

Image 8

Conventional swimming pool control enclosure with Electair frame system. To support digital stats and access to RCD and time switches.

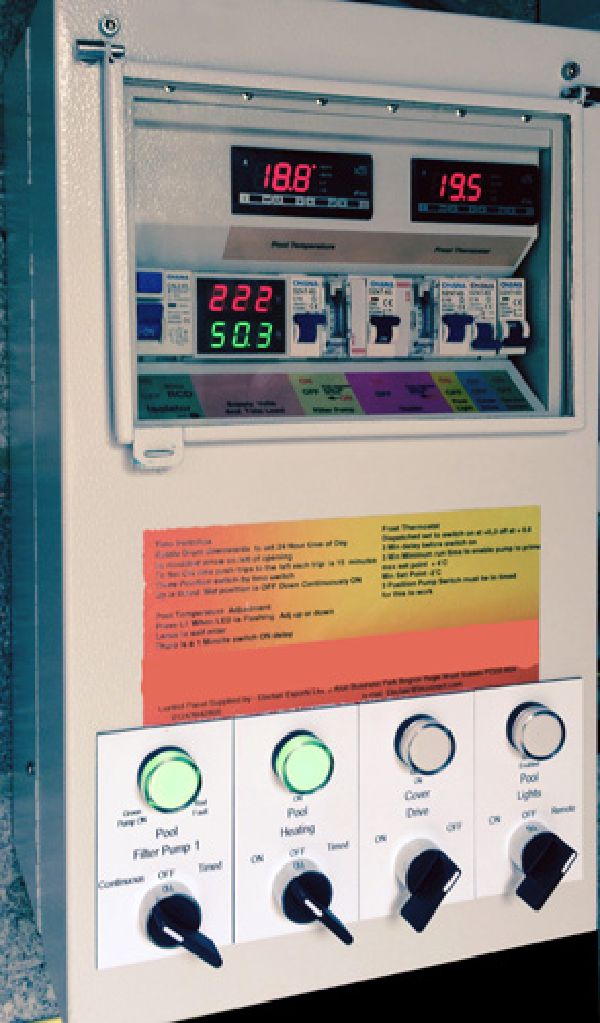

Single phase supply control panel with digital temperature and frost protection thermostats

Image 9

Single phase supply with digital temperature and frost protection thermostats. Supply voltage and total load amps meter fitted. Built in an Amendment 3 compliant 13 module electrical enclosure.

Single phase swimming pool control panel

Image 10

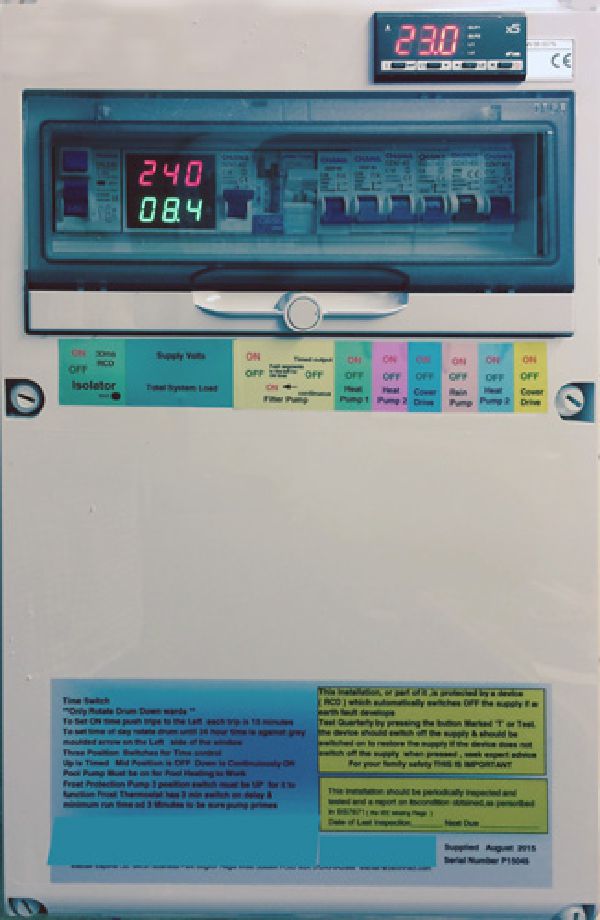

Single phase pool control in plastic enclosure with swimming pool temperature thermostat and volts and load monitoring.

Metal swimming pool and spa enclosure Amendment 3 compliant

Image 11

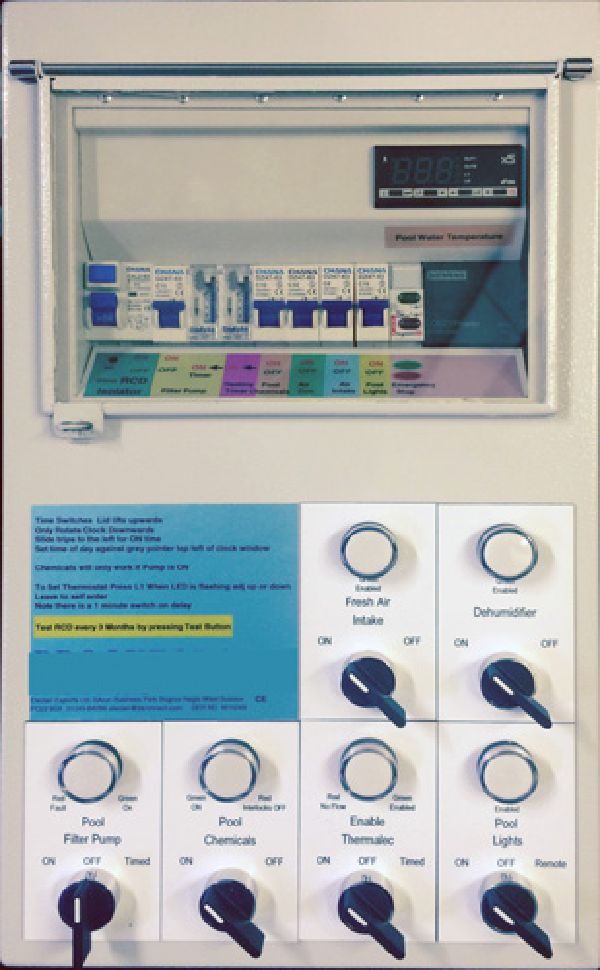

Metal electrical enclosure for single phase pool control with flood sensor and digital frost thermostat, built in an Amendment 3 compliant 13 module metal enclosure.

Single phase electrical control panel in plastic

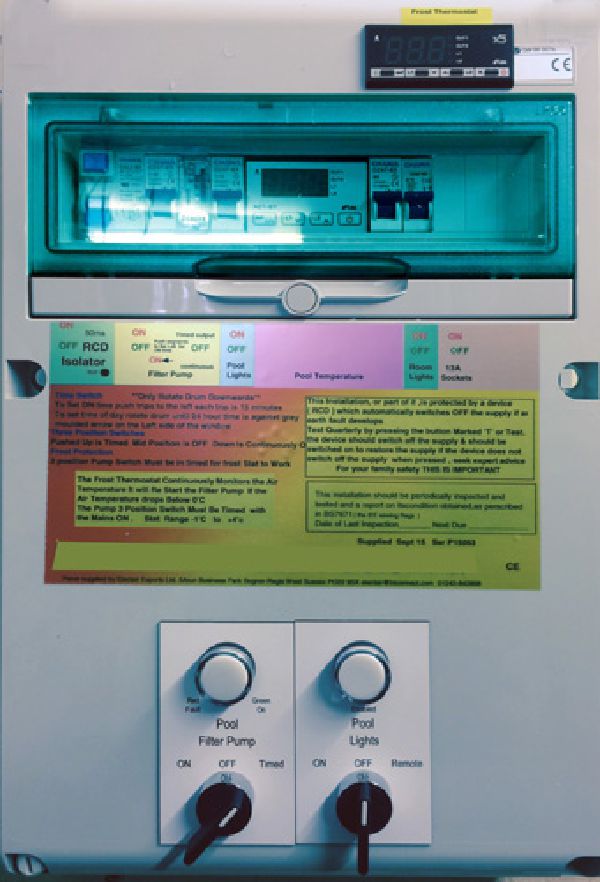

Image 12

Single phase electrical control enclosure in plastic 20 module enclosure with frost and swimming pool temperature control.

Lower cost plastic electrical control panel enclosure

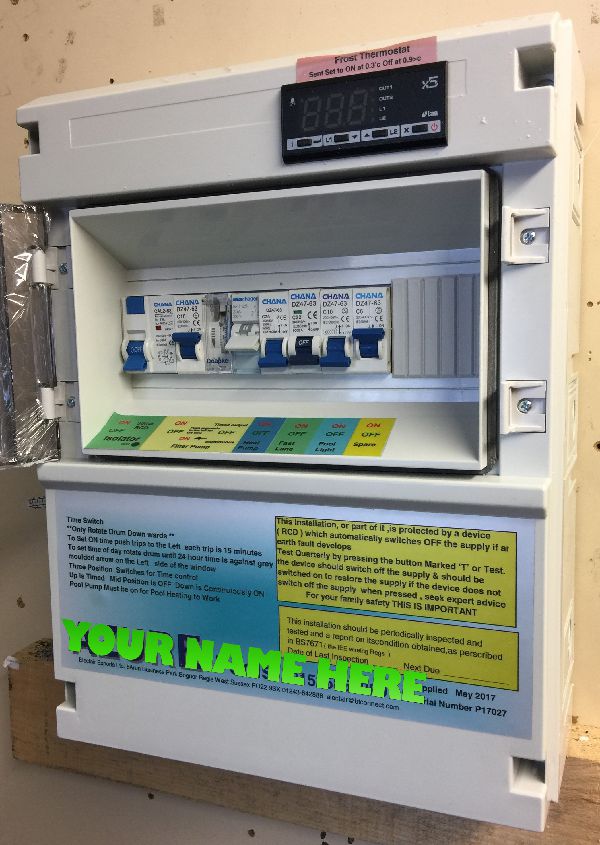

Image 13

Lower cost plastic swimming pool and spa control enclosure, 12 module with digital frost thermostat.

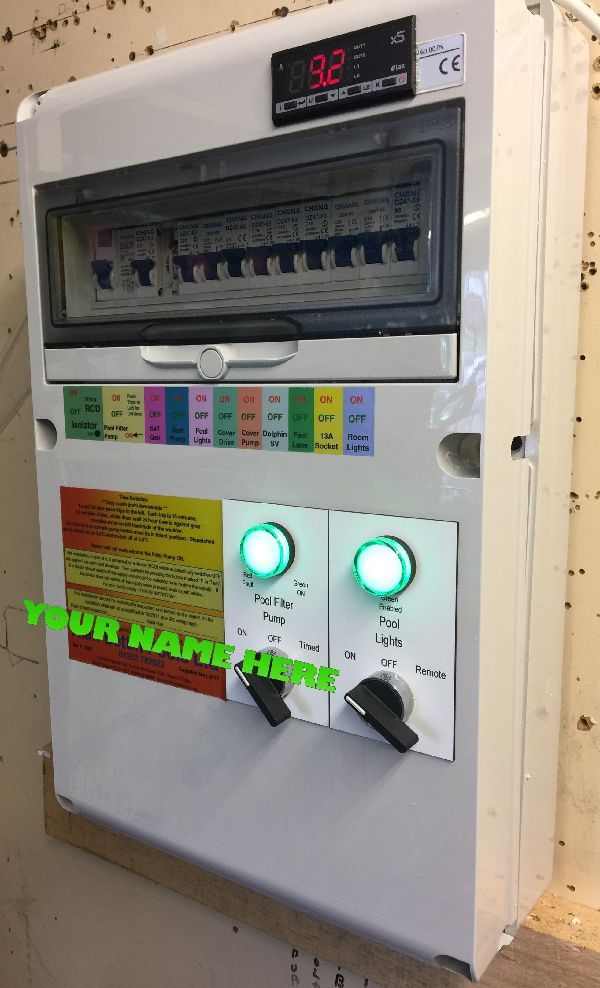

Electair interior of swimming pool and spa control panel

Image 14

Garden swimming pool control panel in 20 module enclosure.

Low cost metal electrical enclosure Amendment 3 compliant

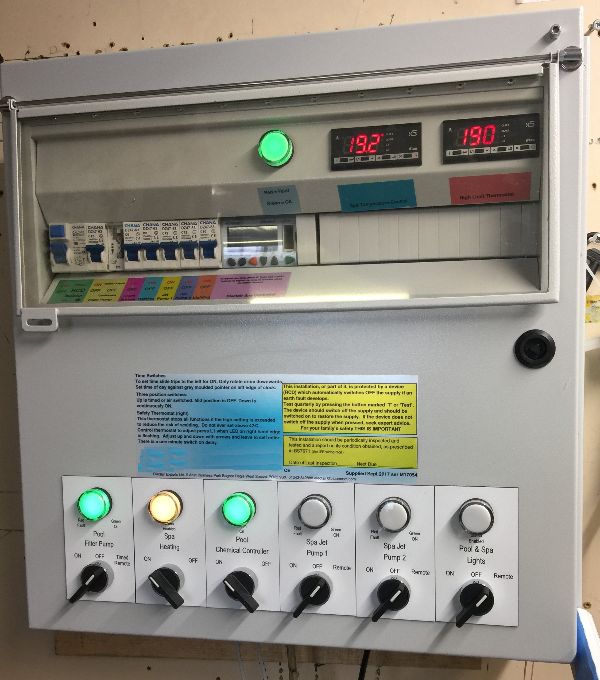

Image 15

Commercial spa control panel with thermostat, timed functions and high limit blockout.

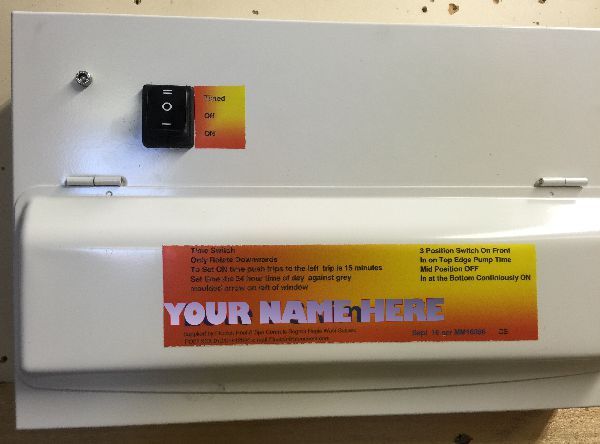

Inside of low cost metal enclosure swimming pool and spa control panel

Image 16

Low cost Amendment 3 compliant panel. Only suitable for small swimming pools.

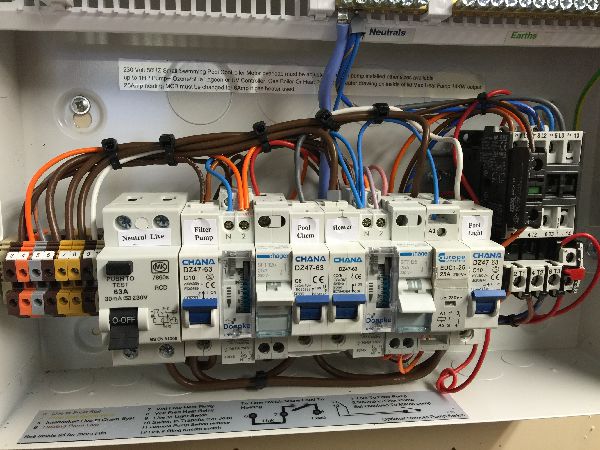

General view of control panel for swimming pools and spas

Image 17

Lower cost metal control panel enclosure maxed out with components, only space for one contactor.

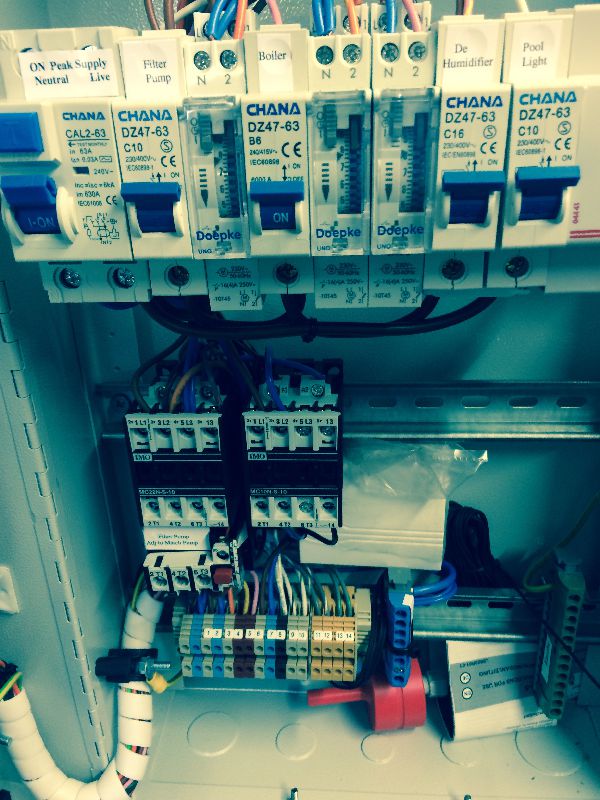

Typical inside of smaller metal enclosure for swimming pool and spa control panels

Image 18

Typical inside of smaller swimming pool and spa control metal enclosure.

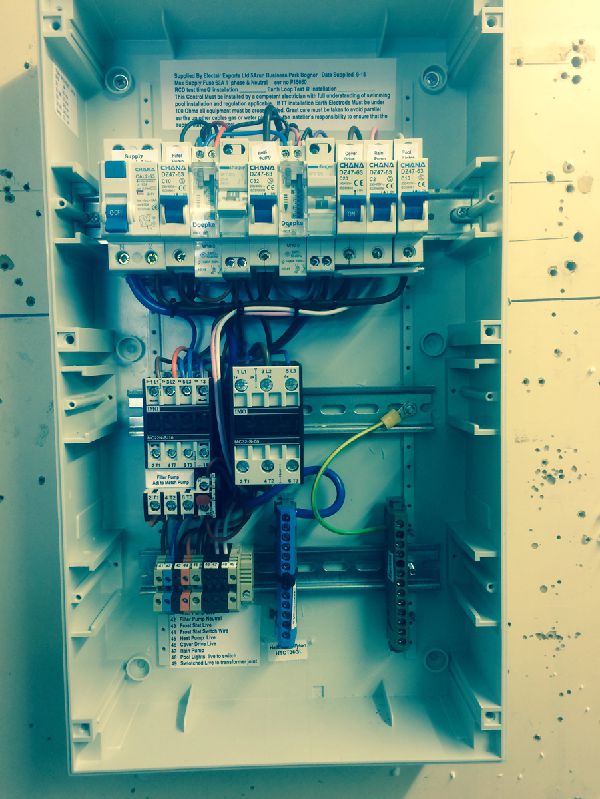

Typical inside of smaller plastic swimming pool and spa control panel

Image 19

Typical inside of smaller plastic control panel enclosure.

Typical inside of 20 module plastic control panel for swimming pools and spas

Image 20

Typical inside of 20 module plastic swimming pool and spa control enclosure.

Electrical enclosure for swimming pool and spa control panels

Image 21

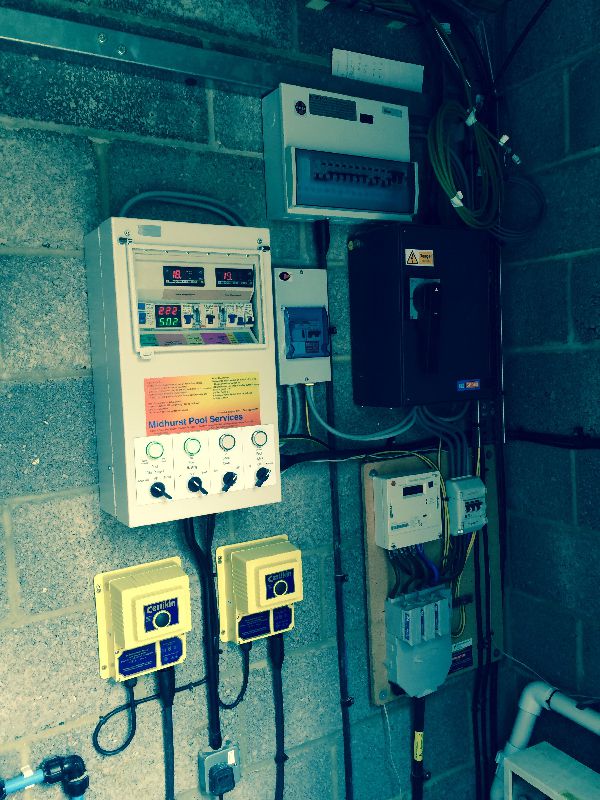

Garden swimming pool control panel installed with other electrical equipment.

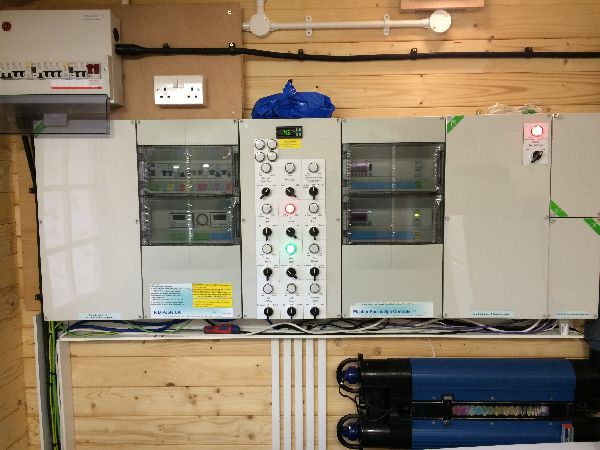

Larger garden swimming pool and spa installation

Image 22

Very large garden swimming pool and overflow spa installation with remote controlled variable speed pumps.

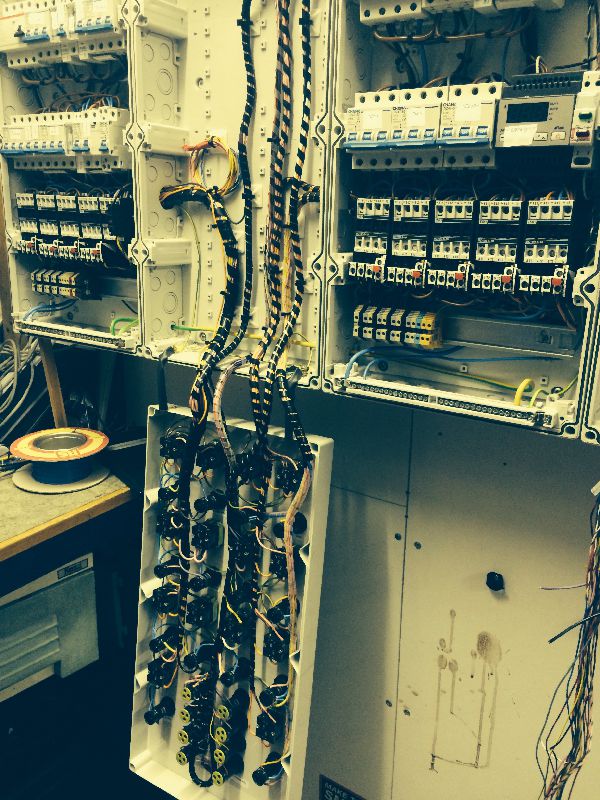

Interior of control panel for a swimming pool and spa

Image 23

Large plastic swimming pool and spa control panel during installation.

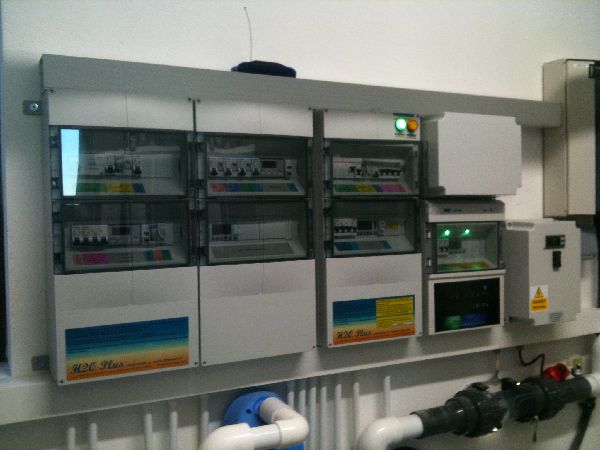

All types of enclosures and swimming pool and spa control panels

Image 24

Another swimming pool and spa control panel installation.

Image 25

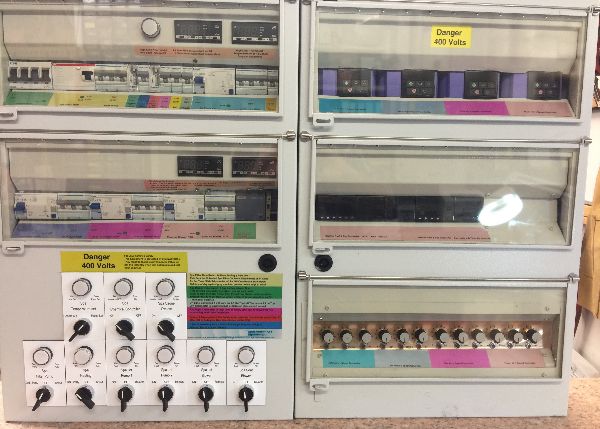

Major project control panel with four speed control systems, each with three pot adjustable settings. Multi zone temperature control as requested.

Electair swimming pool and spa control panel

Image 26

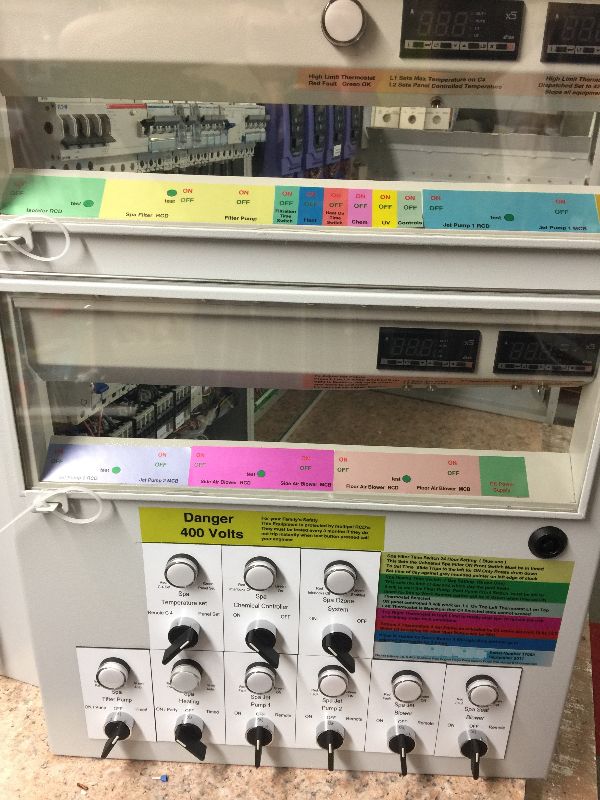

Left door of control panel shown in image 26, partially open

Electair swimming pool and spa control panel enclosure

Image 27

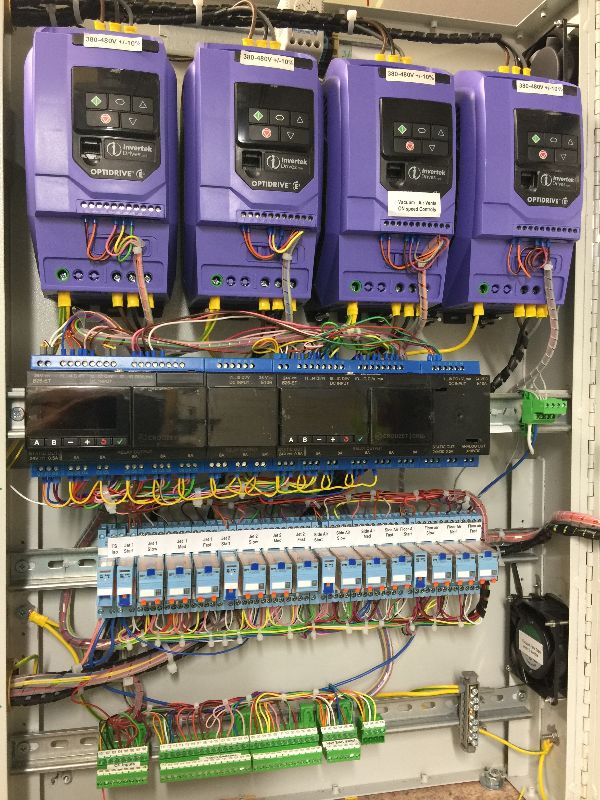

Right hand side of swimming pool control panel shown in image 26 showing internal workings with two Crouzet M4 PLCs controlling functions.

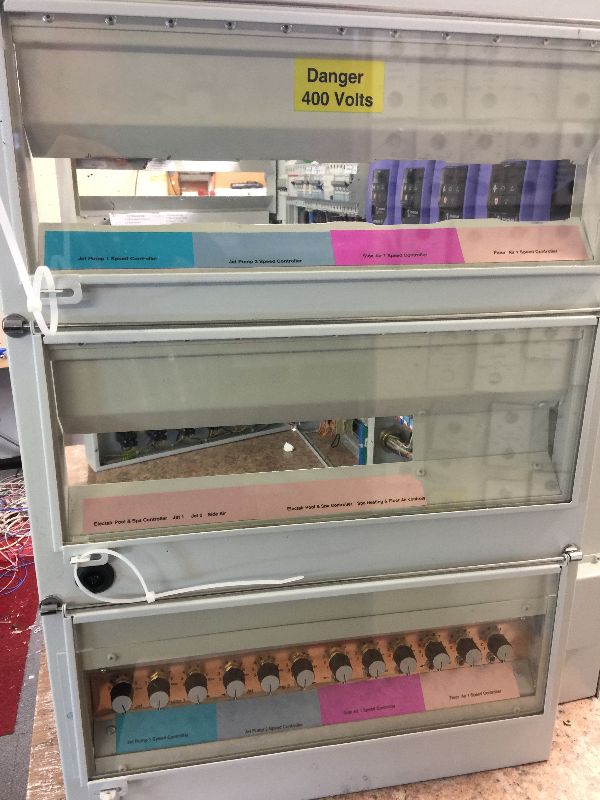

Electair Exports swimming pool control panel

Image 28

Right hand side door of control panel shown in image 26, partly open showing adjustable set points.

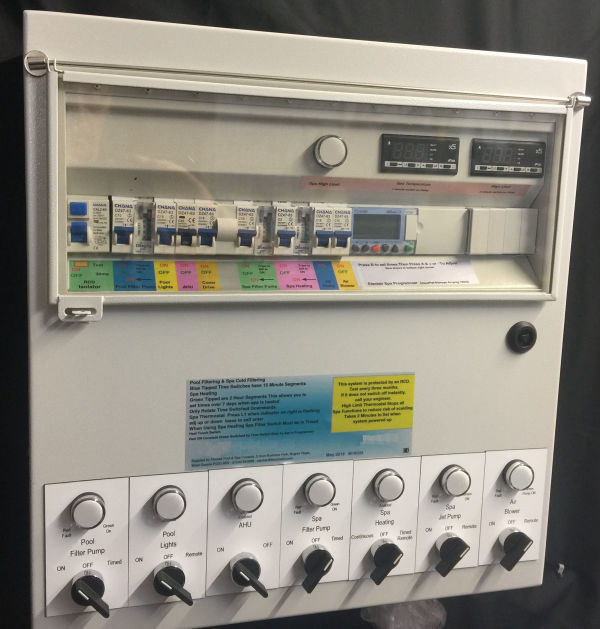

Combined swimming pool and control panels

Image 29

Combined swimming pool and spa control panel for use inside a building to comply with Amendment 3.

Swimming pool and spa control panels in enclosure

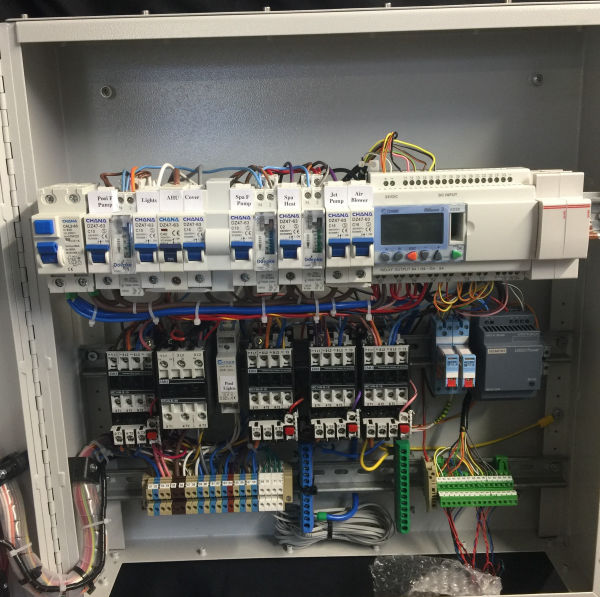

Image 30

Inside view of the control panel shown in image 31.

Control panels for swimming pools and spas

Image 31

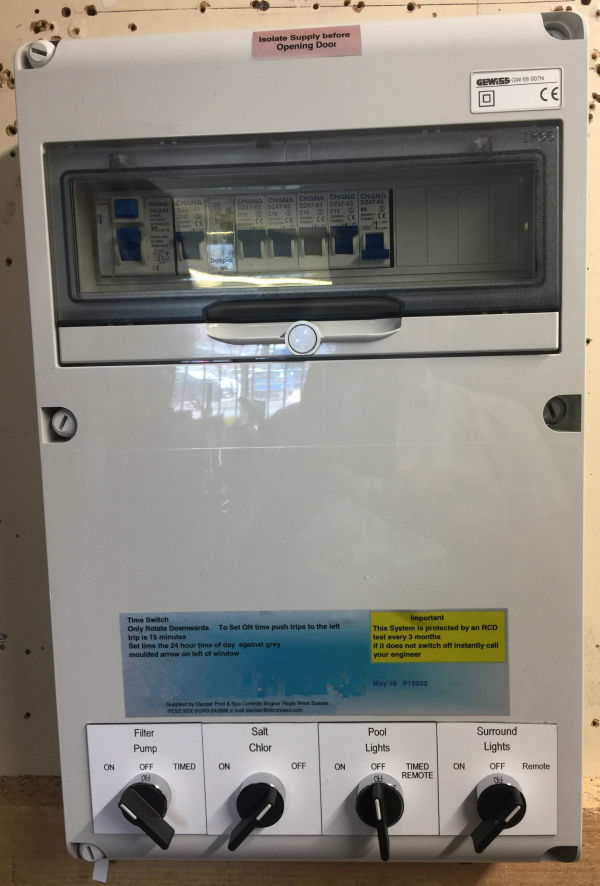

14 module conrol panel enclosure with rotary switches for use in outbuilding.

Electair Exports swimming pool and spa control panel

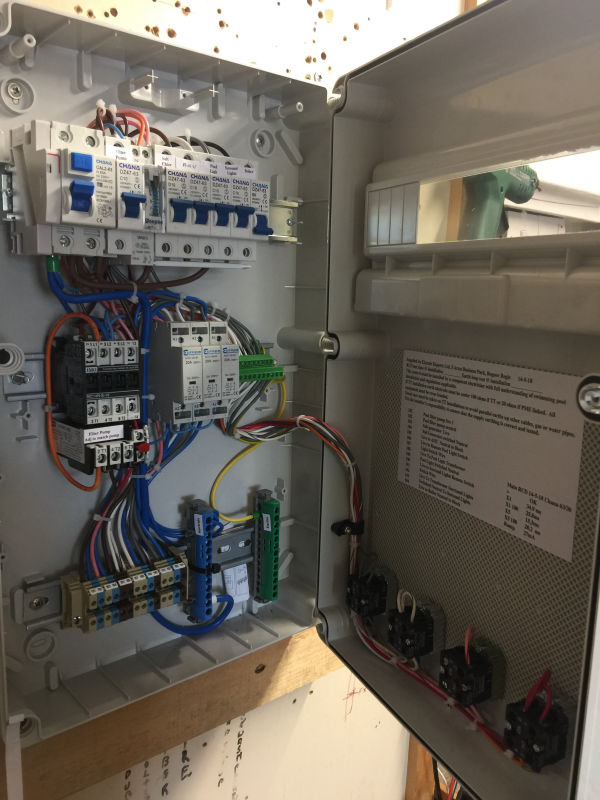

Image 32

Inside view of the control panel shown in image 33.

Image 33

Front cover of heat pump add on box to meet 17th Edition Regulations, internal picture as per image 37.

Image 34

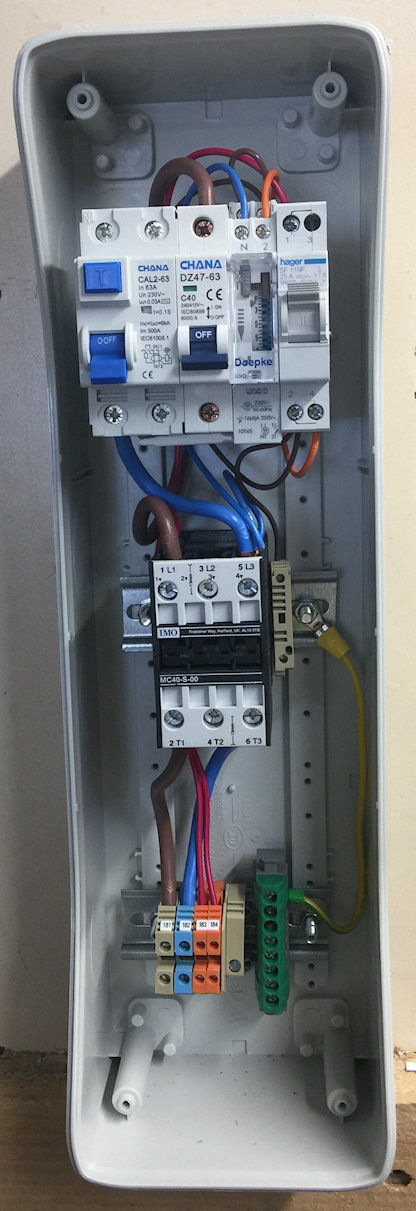

Heat pump add on box to meet 17th Edition Regulations.

Swimming pool and spa control electrical enclosures

Our panels use fire rated viewing panels.

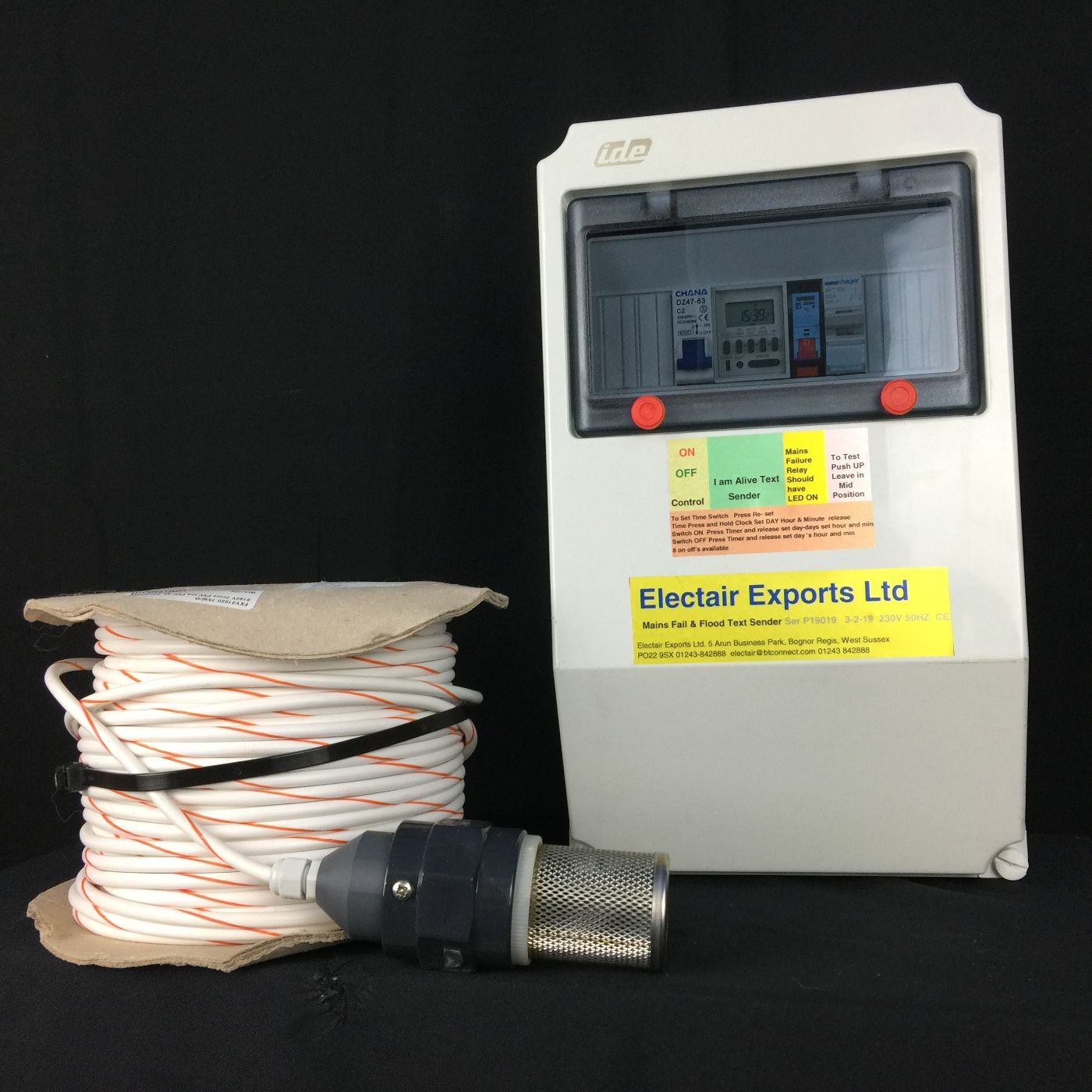

Battery SMS Alarm for Mains Failure or Flood

Many times a year we hear of expensive equipment that has been damaged due to mains failure of a surface water pump. This device has a battery powered SMS sender alert that will advise you of mains failure or high water level..

Swim Spa Frost Thermostat

This control has two temperature sensors, one to monitor the air and an optional second one to monitor the water temperature. The filter pump can be set for continuously on during a frost situation. The heater can be set to come on at a lower temperature if the site requires. When the air teperature rises, it will switch off both water and air heating. Other pumps and blowers are sequenced switched on for three minutes and off for 30 minutes to conserve energy. The filter pump, providing there is no heating, can also be sequenced switched. These times can be adjusted at the time of manufacture to your requirements The set temperature and the now temperature are displayed on the screen and the set points are adjustable.
